• 380 ~ 480 V 3 AC, ±10 % (-15 % < 1 min) 110 ~ 560 kW
• 500 ~ 600 V 3 AC, ±10 % (-15 % < 1 min) 110 ~ 560 kW
• 660 ~ 690 V 3 AC, ±10 % (-15 % < 1 min) 75 ~ 800 kW

• TN/TT line supplies or isolated supplies (IT line supplies)

• 47 ~ 63 Hz

• 0 ~ 300 Hz

• > 0.98
• 0.93 ~ 0.96

• > 98 %

• Vector Control with and without a sensor or V/f control

• 15 fixed speeds plus 1 minimum speed, parameterizable

(in the default setting, 3 fixed setpoints plus 1 minimum speed are selectable using terminal block/PROFIBUS)

• 4, parameterizable

• 0.001 rpm digital
• 12-bit analog

• Using additional Braking Modules and braking resistors

• IP00 or IP20 dependent on the type

• following EN 61800-5-1

• Forced air cooling AF following EN 60146

• :: 73 dB at 50 Hz line frequency

• BGV A3

• EN 61800-5-1, EN 60146-1, EN 61800-2, EN 61800-3, EN 60204-1, EN 60529

• Following EMC directive No. 2004/108/EC and low-voltage directive No. 2006/95/EC

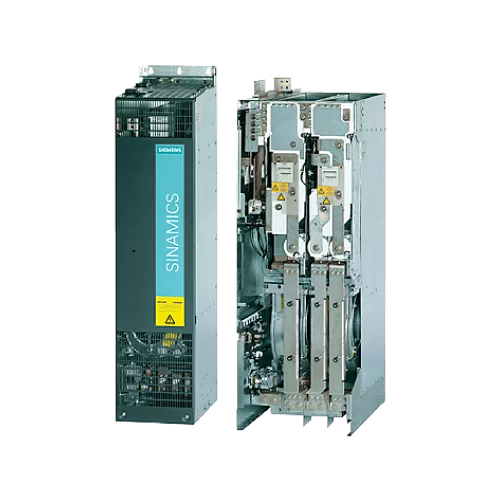

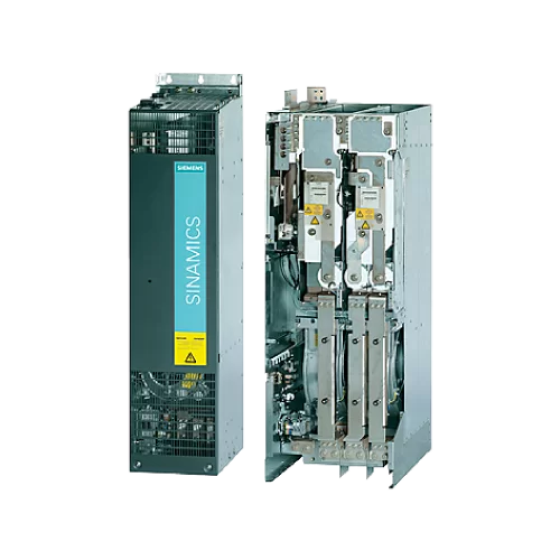

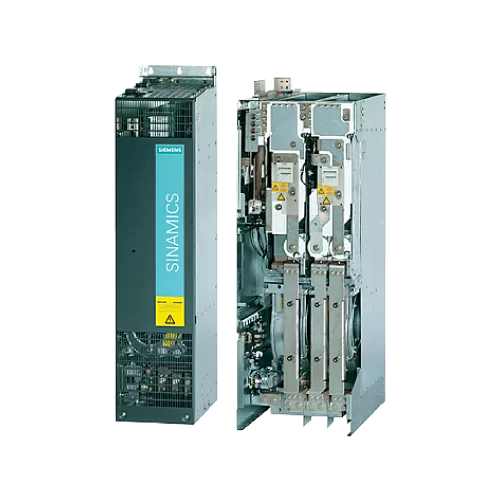

• The SINAMICS G130 converter systems are not designed for connection to the public power network (“First environment”). EMC conformance is compliant with the EMC product standard for variable-speed drives EN 61800-3, “Second environment” (industrial networks). The equipment can cause electromagnetic interference when it is connected to the public network. If supplementary measures are taken (e.g. ➔ line filter), it can also be operated in the “First environment”.

• cULus (File No. E192450)

• -25 ~ +55 °C

• -25 ~ +70 °C

from -40 °C for 24 hours

• 0 ~ +40 °C

up to +50 °C see derating data

• 5 ~ 95 %
• Corr. to 1K4 to EN 60721-3-1

• 5 ~ 95 %

at 40 °C
Corr. to 2K3 to EN 60721-3-2

• 5 ~ 95 %

Corr. to 3K3 to EN 60721-3-3

• Class 1C2 to EN 60721-3-1

• Class 2C2 to EN 60721-3-2

• Class 3C2 to EN 60721-3-3

• Class 1B1 to EN 60721-3-1

• Class 2B1 to EN 60721-3-2

• Class 3B1 to EN 60721-3-3

• up to 2000 m above sea level without derating, > 2000 m see derating data

• 1.5 mm at 5 … 9 Hz
• 5 m/s2 at > 9 … 200 Hz

Corr. to 1M2 to EN 60721-3-1

• 3.1 mm at 5 … 9 Hz
• 10 m/s2 at > 9 … 200 Hz

Corr. to 2M2 to EN 60721-3-2

• 0.075 mm at 10 … 58 Hz
• 10 m/s2 at > 58 … 200 Hz –

• 40 m/s2 at 22 ms

Corr. to 1M2 to EN 60721-3-1

• 100 m/s2 at 11 ms

Corr. to 2M2 to EN 60721-3-2

• 100 m/s2 at 11 ms

Corr. to 3M4 to EN 60721-3-3
