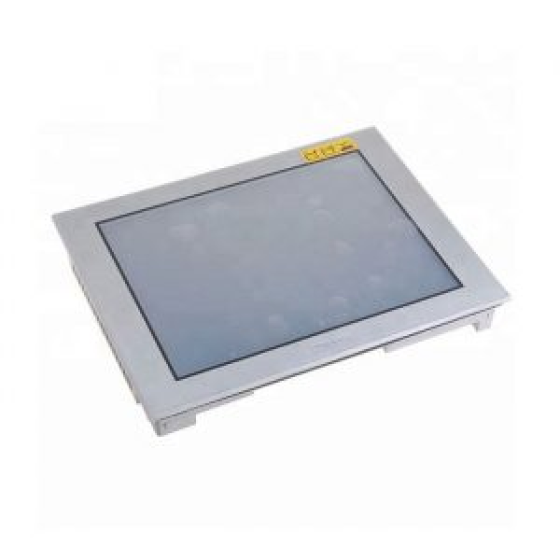

HMI Proface PFXET6400WAD 7 inch
-
4
-
SKU: PFXET6400WAD
Hãng sản xuất: Proface
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: Hóa đơn VAT
| Display type | TFT Color LCD |
| Display size | 7″ Wide |
| Resolution | 800 x 480 pixels (WVGA) |
| Effective display area | W154.08 x H85.92 mm [W6.066 x H3.382 in.] |
| Display colors | 16 million colors*1 |
| Backlight | White LED (Not user replaceable. When replacement is required, contact customer support.) |
| Backlight service life | 50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%) |
| Brightness control | 16 Levels (Adjusted with touch panel or software) |
| Touch panel type | Resistive Film (analog, single-touch) |
| Touch panel resolution | 1,024 x 1,024 |
| Touch panel lifetime | 1,000,000 times or more |
| Rated input voltage | 24 Vdc |
| Input voltage limits | 19.2 to 28.8 Vdc |
| Allowable voltage drop | 5 ms or less |
| Power consumption | 9 W |
| In-rush current | 30 A or less |
| Voltage endurance | 1,000 Vac, 20 mA for 1 minute (between charging and FG terminals) |
| Insulation resistance | 500 Vdc, 10 MΩ or more |
| Application memory | When using GP-Pro EX: – Media: FLASH EPROM – Screen Area: 32MB – User Font Area: 8MB – Logic Program Area: 132KB (Equivalent to 15,000 steps) – Free Space: None
Removable System: No |
| Backup memory | When using GP-Pro EX: – Screen Area: SRAM 128KB – Variable Area: None
Battery: Replaceable battery / Primary battery for clock data backup |
| Serial (COM1) | Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug) |
| Serial (COM2) | Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug) |
| USB (Type A) | Conforms to USB 2.0 (Type A) x 1 |
| USB (micro-B) | Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft] |
| Ethernet | IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1 |
| Grounding | Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard. |
| Cooling method | Natural air circulation |
| Structure | IP65 |
| External dimensions | W205.5 x H150.5 x D45 mm |
| Panel cut-out dimensions | W190 x H135 mm [W7.48 x H5.31 in.] |
| Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*1 | |
| Weight | 0.8 kg [1.76 lb] or less |
