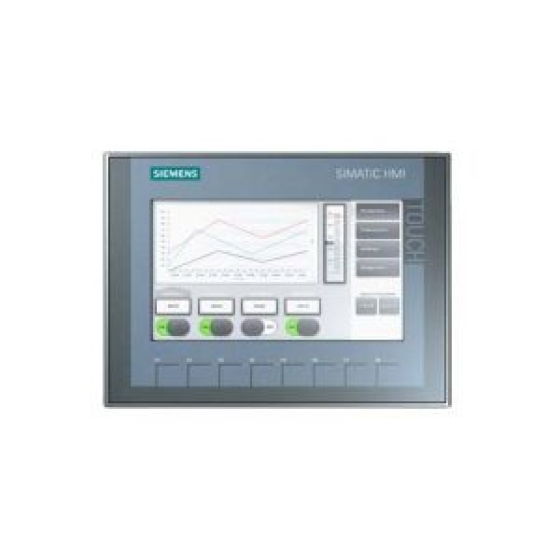

Màn hình HMI Basic KTP 700 7″ 6AV2123-2GB03-0AX0
-
3
-
Hãng sản xuất: Siemens
SKU: 6AV2123-2GB03-0AX0
Chất lượng: Mới 100%
Bảo hành : 12 tháng chính hãng
Chứng từ : Hóa đơn VAT
SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
| Attribute | Value |
| Manufacturer Series | KTP 700 |
| Display Type | TFT |
| Display Size | 7 in |
| Display Resolution | 800 x 480pixels |
| Display Colour | Colour |
| Number of Ports | 1 |
| Port Type | Ethernet |
| Onboard Memory | 10 MB |
| Backlighting | Yes |
| Supply Voltage | 24 V dc |
| Dimensions | 214 x 158 x 39 mm |
| Minimum Operating Temperature | 0°C |
| Depth | 39mm |
| Width | 158mm |
| Length | 214mm |
| IP Rating | IP65 |
| Maximum Operating Temperature | +50°C |
